Description

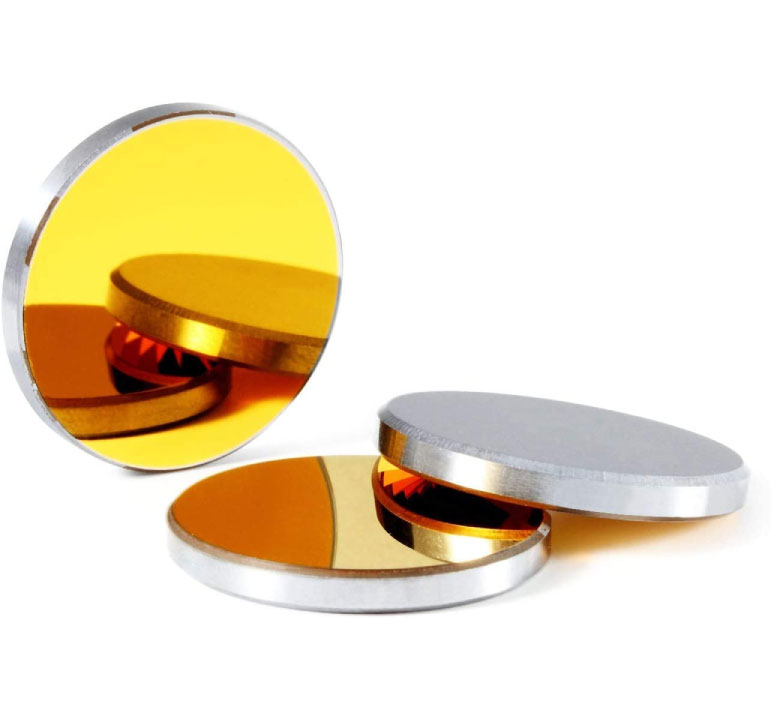

🔧 CO2 Laser Mirror Set – 25mm & 30mm Compatible with PLS Systems
This CO2 Laser Mirror Set is designed to replace the existing mirrors in your PLS or compatible CO₂ laser system. Available in 25mm and 30mm diameters, these mirrors are suitable for machines ranging from 60W to 150W.
Laser mirrors play a critical role in your laser’s performance. They guide the beam from the laser tube to the cutting head, keeping the beam aligned and efficient across the entire gantry.
🪞 Where These Mirrors Fit
Most CO₂ laser systems use three mirrors:
-
First mirror – located at the rear, aligned directly with the laser tube
-
Second mirror – mounted on the x-axis gantry
-
Third mirror – found inside the laser head, directing the beam down to the lens
Additionally, some machines include a two-way mirror between the laser tube and the first mirror. This allows both the laser beam and a red dot pointer to pass through, offering improved alignment and visibility.
⚙️ Features & Compatibility
-
✅ Available in 25mm and 30mm diameters
-
✅ Suits 60W to 150W CO₂ laser systems
-
✅ Compatible with most PLS-style setups
-
✅ Reflects CO₂ laser beams with minimal loss
-
✅ Designed for high beam alignment precision
-
✅ Includes optional two-way mirror for red dot alignment systems
These mirrors are a direct drop-in replacement for worn or damaged mirrors in your system. If your laser is losing power or your cuts are inconsistent, upgrading your mirrors may restore your machine’s performance instantly.
