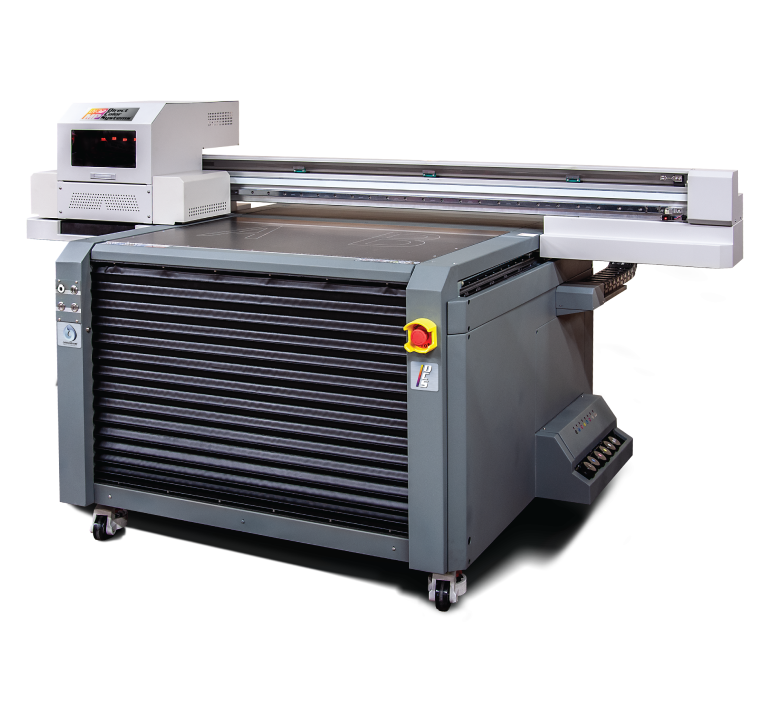

UV-32MP UV Printer – Medium Format Flatbed with Industrial Power

Step into the next generation of UV flatbed printing with the UV-32MP UV Printer—an industrial-grade, medium-format solution designed to offer precision, versatility, and low maintenance. Powered by Chromasphere™ Print Technology, the UV-32MP delivers vivid colour, highly detailed textures, and rock-solid reliability across a wide range of substrates.

Whether you’re producing promotional items, Braille signage, or full-colour retail displays, the UV-32MP is the flatbed printer built to perform—day after day.

Watch a demonstration of the printer in action.

---

🔍 Designed for Professional Print Environments

Say goodbye to gravity-fed print systems and consumable print heads. The UV-32MP uses Piezo inkjet technology with variable drop sizes (5–12pL) for accurate greyscale gradients and smoother results.

• ✅ 1680 stainless steel nozzles per head

• ✅ Closed-loop ink delivery for consistency

• ✅ Recirculating white ink system keeps whites bright

• ✅ Chromasphere bulk ink tanks – add ink on the fly

• ✅ No capping stations or dampers to maintain

• ✅ 6-pass print speed: 60 ft²/hr (5 m²/hr)

---

📦 Industrial Build, Compact Footprint

Despite its industrial performance, the UV-32MP UV Printer has a compact format that fits comfortably into busy production spaces.

• Printer size: 223.2cm x 115cm x 127.2cm

• Crated weight: 520kg

• Material height clearance: 12.6” / 32cm

• Print area: 60cm x 90cm

• Max substrate: 62cm x 92cm

• Vacuum hold-down table for perfect alignment

---

🎯 Versatility That Means Business

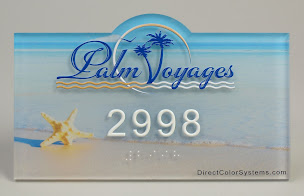

From ADA-compliant Braille signage to decorative textured prints and high-impact promo items, this printer does it all. Use white and clear varnish layers for added depth and contrast.

Supported materials include:

• Plastic

• Metal

• Wood

• Glass

• Acrylic

• Leather

• Coated paper and more

---

🖥️ Software & Power

• RIP: Color Byte 12 with Compass & control software

• Power: 220–240V, 50/60Hz, 20A single phase

• Optimal operating temp: 20–25°C, 40–60% RH

---

The UV-32MP UV Printer gives your business the speed, clarity, and flexibility it needs—without the high maintenance of older systems.

👉 Book a live demo or speak to our team for expert advice. Contact Us

PS: Ask us about the ADA starter pack or signage bundle for UV printers.

Here is a online demonstration.
